Dispenser filters for E10: selection and maintenance
How to select and maintain dispenser filters for ethanol blends using product, function, flow, connection, manufacturer documentation and actual condition, without prescribing one universal model or interval.
Selection and technical context
In this article

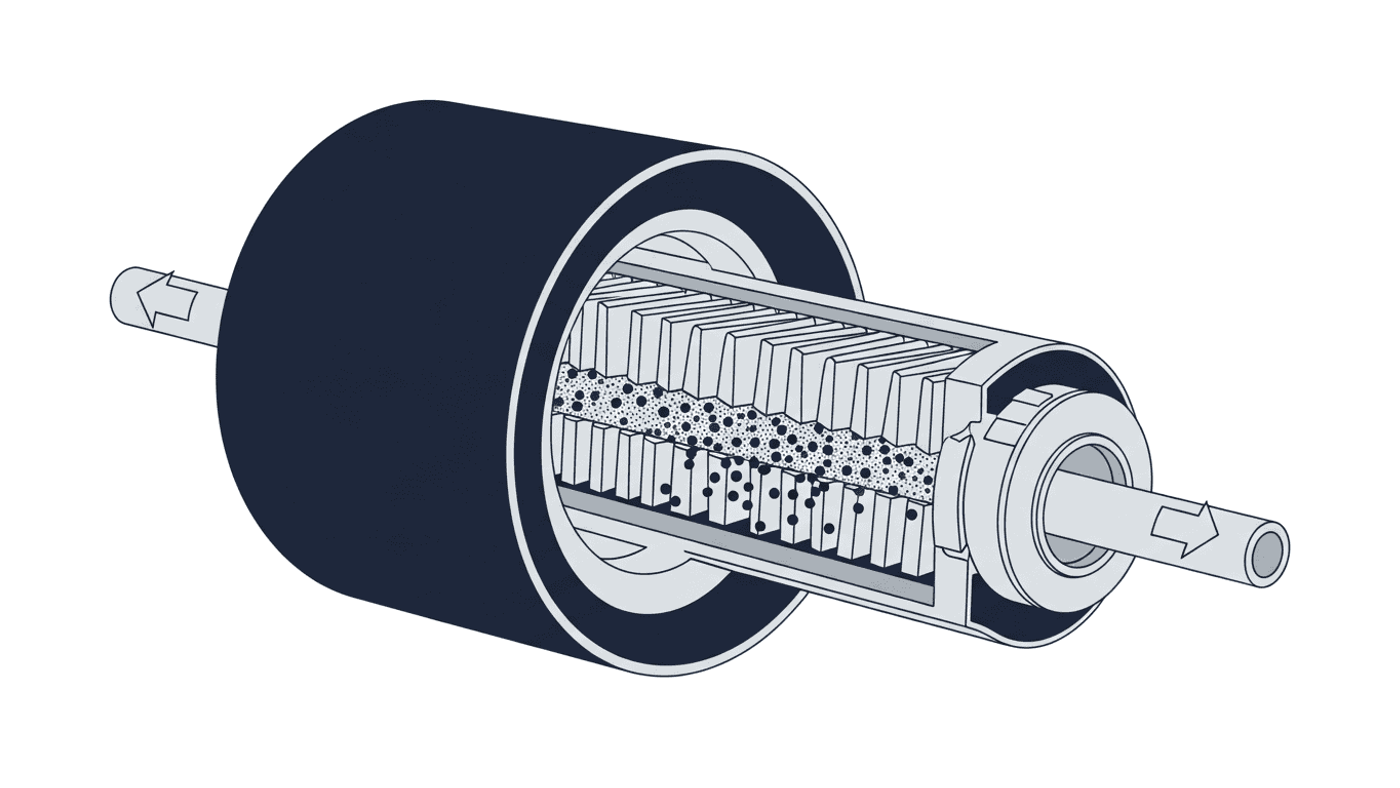

A dispenser filter is not selected by thread, color or micron rating alone. It must match the product, flow, pressure, filtration function, head and equipment conditions. With ethanol blends, material compatibility and the filter’s response to water or phase separation also matter. A model recommended for one configuration is not a prescription for every station.
Define the function before the model
Some filters primarily remove particulate matter; others are designed for a specific detection or restriction response under certain water conditions. Those functions depend on design and the fuel declared by the manufacturer. A “water-absorbing” label or similar wording does not establish behavior with every ethanol blend. Read the exact data sheet and confirm limitations.
Data required for selection
| Data | Why it matters |
|---|---|
| Product and blend | Defines chemical compatibility and expected function |
| Dispenser and filter-head model | Determines connection, space and pressure |
| Required flow | Prevents a restriction incompatible with operations |
| Filtration grade | Should follow quality control, not an isolated number |
| Part number | Makes the data sheet and correct replacement traceable |
| Change condition | Links differential, flow, hours or event as specified |
Reading a data sheet: Cim-Tek 400-10
The PF-037 data sheet, Rev. E, dated December 22, 2023 identifies the Cim-Tek 400-10, part 70015: cellulose media, 10 µm, a maximum flow of 25 gpm (94.6 L/min), and gasoline with ethanol up to 25%. Its stated function is particulate removal; these figures do not establish water detection or phase-separation prevention.
The limits apply to that part and revision. Compare blend, flow, pressure limits and connection against the filter-head and dispenser documents; one component’s data sheet does not validate the complete installation. This is a documentary example, without confirming Master Services stock or approval in Panama.
When to replace a filter
The interval depends on the installed filter and its operating conditions. Establish a flow or pressure baseline when the system is in known condition and use manufacturer-supported indicators: restriction, flow loss, processed volume, maximum time, observed contamination or a fuel-quality event. Waiting too long can affect operations; replacing on a fixed schedule without operating data can conceal the source loading the filter.
If several filters plug rapidly, investigate the tank, sediment, water, recent delivery and product instead of installing another filter only. Reduced flow can also originate in the pump, valve, piping or dispenser. Record the diagnosis before assigning the cause to the filter.
Traceable maintenance procedure
These tasks, including leak and flow checks, should be performed only by trained, authorized personnel under the equipment manual and site procedure.
- Identify fueling position, product and installed part number.
- Isolate and depressurize under the manual and safety procedure.
- Contain product and remove the element without contaminating the area.
- Inspect and record the removed filter without using appearance as the only diagnosis.
- Verify the seal, orientation, torque or manufacturer-specific instructions.
- Test for leaks and flow; update the date, reading and responsible person.
Disposal of the used filter and retained fuel should follow the site environmental plan and applicable waste managers. It should not be emptied to a drain or left as unidentified waste.
E10 and Panama operations
The EPA technical reference on phase separation explains that water tolerance changes with temperature and composition. A filter does not replace water-ingress control or product-quality sampling. Use our guides to phase separation and the E10 adaptation matrix.
Panama’s prior implementation schedule was suspended. Confirm the current framework and actual product specification before purchasing a large filter inventory.
Frequently asked questions
Which micron rating should I use?
Use the rating documented for the equipment, product, flow and quality control. An isolated number is not enough.
Does a water-detecting filter prevent phase separation?
No. It may respond under specified conditions, but it does not prevent water entry or replace product diagnosis.
Should replacement follow time or flow?
Use manufacturer criteria and an operational baseline. Record the actual trigger for each change.
If the filter plugs again
Record the part number, baseline flow and replacement trigger. If plugging repeats, investigate the fuel and tank before blaming the filter. Confirm compatibility and service limits with the manufacturer.
